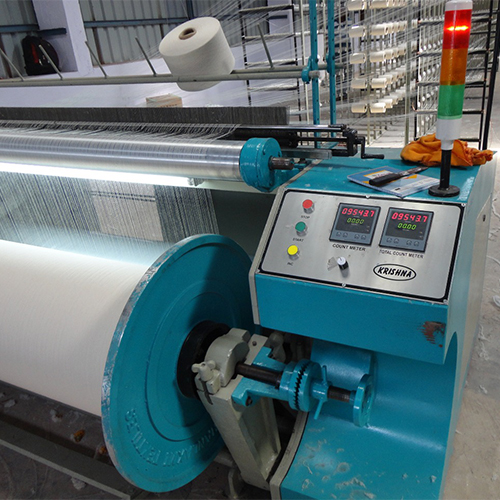

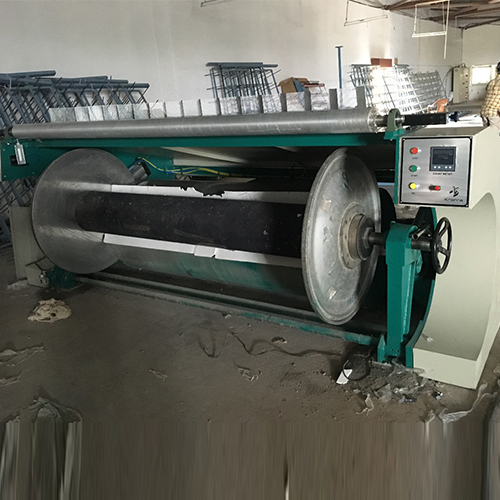

High Speed Drum Warping Machine
Product Descriptions
The High-Speed Drum Warping Machine is a crucial piece of equipment
used in the textile industry for the warping process. Warping refers to the preparation
of yarns for weaving or knitting, where multiple threads are wound onto a beam in a
specific pattern. The drum warping machine ensures high-speed, uniform, and accurate
warping, which is vital for consistent fabric quality.
-
01. High Speed: The machine operates at high speeds,
allowing for faster processing, which increases productivity.
-
02. Precision Control: Equipped with advanced control
systems for accurate yarn tension and alignment, ensuring even and
smooth warping.
Whatsapp Inquiry
General Features
- Sturdy frame & wall structure for vibration free working.
- Twin Disc type brake system for quick stop.
- Dynamically balanced drum for smooth working at high speed.
- Dynamically balanced light weight measuring guide roller.
- Dynamically balanced machine pulley.
- Hydraulic power pack with standard components.
- Angular Contact bearing for beam pressure device.
- Drive with Crompton / ABB A.C. motor.
- AC Frequently Inverter Driver of Standard make.
- Photo electronic rays sensor as beam guard for full safety or wrapper.
- All components including nuts & bolts are used of standard make.
- Machine look & design made architecturally as well as user design.
- Simple designs with high technology for better performance.
Technical Specification
| Machine Speed |
50 mpm to 700 mpm |
| Workable Dia available |
60.5, 63.5, 68.5, 72.5, 78.5, 54.6" or 1550 mm, 1600 mm, 1750 mm, 1850 mm, 210 mm, 2400 mm |
| Workable Barrel Dia |
22, -24, -26, -30 or 560 mm, 610 mm, 660 mm, 710 mm, 760 mm |
| Shaft Dia Available |
1.25" (32mm) or 1.5" (36mm) |
| Motor HP According to machine size |
3 HP to 10 HP |
| Stop Motion |
Electro mechanical System fitted on head stock |
