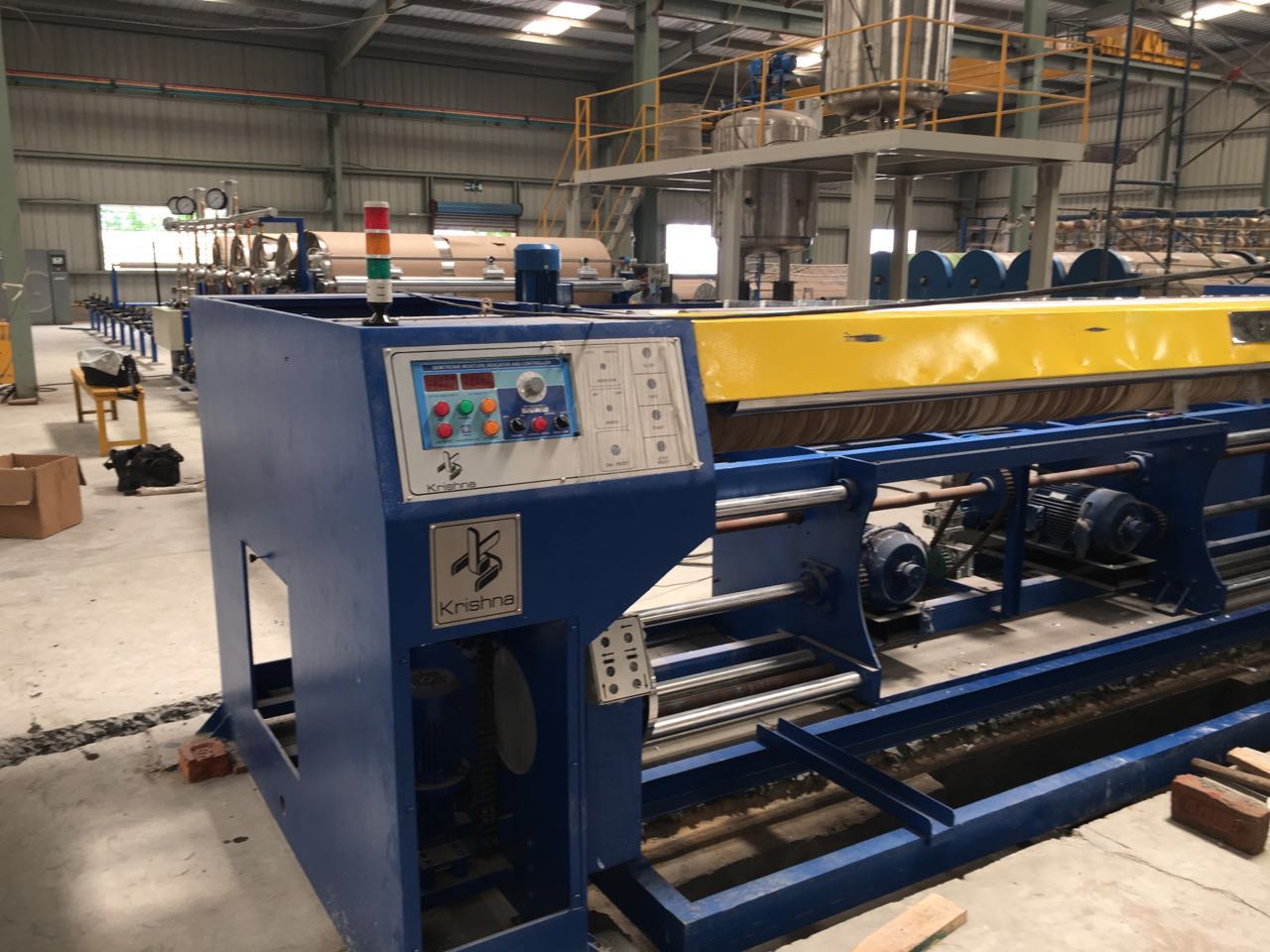

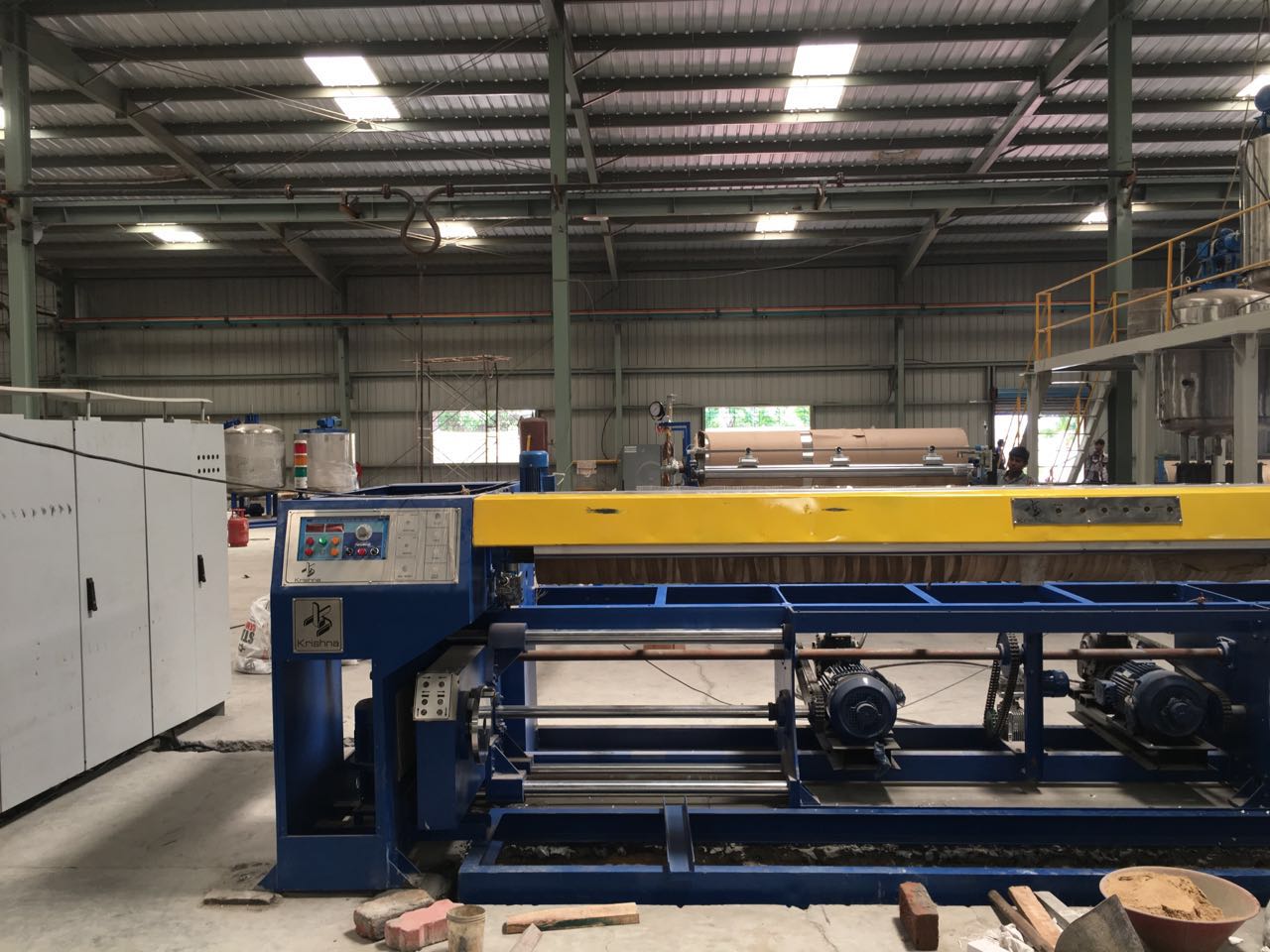

Sizing & Warping Machine (Jute Yarn)
Product Descriptions
The Sizing & Warping Machine for Jute Yarn is a specialized machine
used in the textile industry for preparing jute yarns for weaving. This machine combines
the processes of sizing (to apply a protective coating to the yarns) and warping (to
wind the yarns onto a warp beam). The machine is specifically designed to meet the
demands of jute yarn, which is a natural fiber with unique characteristics compared to
synthetic yarns.
-
01. Sizing and Warping Combination: The machine performs
two key functions—sizing and warping—ensuring the jute yarn is prepared
efficiently and ready for the next step in the weaving process.
-
02. Advanced Tension Control: Equipped with precise
tensioning mechanisms to ensure uniform tension is maintained across all
yarns, preventing breakage and ensuring smooth warping.
Whatsapp Inquiry
Headstock
- heavy and vibration free structure and also newly design for jute yarn
- Multi point and two point machine available
- 500 mm to 4500mm working and flange dia 600 to 1250mm
- Pneumatic beam pressing device
- Auto Moisture controller, temperature controller
- All ele. Equipment and ele. Panel standard make
Dryer
- Specially design for jute yarn and Heavy rotary joint and steam trap
Size box
- Rubber roll made from lathia and specially design for jute yarn
- Pneumatic loaded squeeze roller
- Auto size level controller
Beam Creel
- Manual and autopneumatic beam tension brake
- One lane type beam creel
Controls
- Ac Drives, and standard gearbox with chain wheel drive

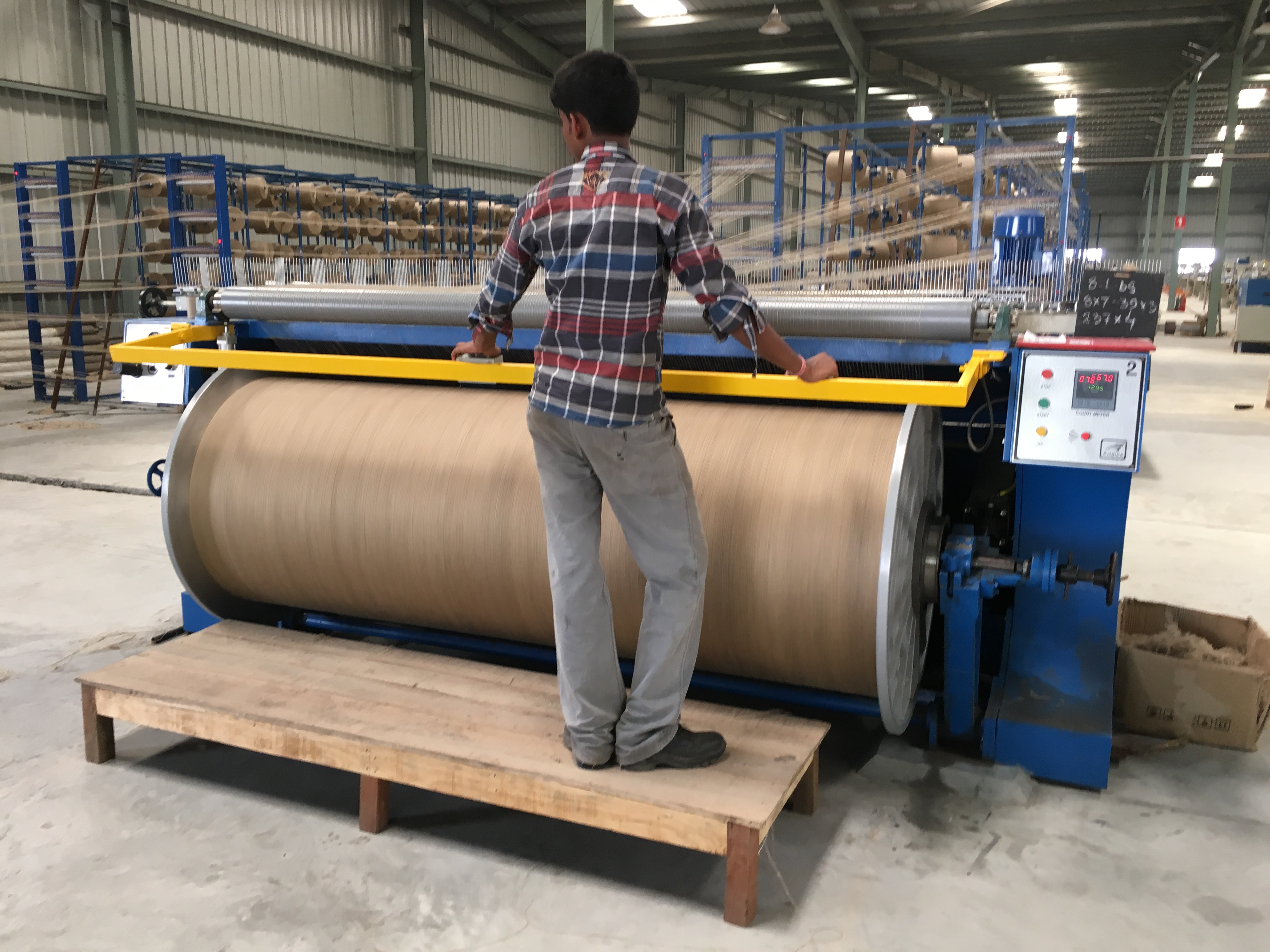

Warping machine (Drum Driven)
- Available for hessian and sacking yarn
- 50" to 120" working and 800mm to 1000mm flange dia
- Donning, doffing and break also pneumatic
- Specially design stop motion and magazine creel 4line and 2 line type
- Tensioner are made specially for jute yarn
- Damping and dye box for sacking yarn
- Ele. Motor and panel equipment are standard make
